Bill Acceptor Flocked Cleaning Cards 65x185mm

Bill Acceptor Flocked Cleaning Cards 65x185mm

Basic Info

Model No.: BVCC-65185FD

Product Description

Bill Acceptor Flocked Cleaning Cards 65x185mm

Characteristics

IPA presaturated cleaning cards is an alternative Cleaner for Bill Acceptors or Validators Preventive Maintenance. It is extremely effective in high level of dirt collection.

Tests conducted by the famous Sulzer Innotec company clearly show that the Moist IPA Cleaning Cards coated with flock fibers achieve a much better level of cleaning than traditional cards.

Features & Benefits

l Economical Costs to maintain your Bill Validator in Routine Maintenance to prevent misread or reading failure.

l Less machine failures due to effective dirt removal.

l Easy handling

l Isopropyl Alcohol Cleaner will safely clean , remove dust, dirty stain, and leave no Residue on the surface.

Applications

For all machine systems with Bank Note Acceptors or Validators, simultaneously cleans drive rollers, belts and reference surfaces.

The Diamond Flocked Cards are available in various widths depending on types of currency.

Technical Specification

Substrate material is PVC, ISO coded, flocked on either side, Pre-saturated with Alcohol Free Cleaner and pouch in Polyester Laminated Aluminium Foil to provide Excellent Moisture Vapor Barrier Bag properties.

1. Card Material : Flocked Fibers/Plastic Core/Flocked Fibers

2. Nominal Card Dimensions: 65 x 185 x 0.40 mm

3. Card Dimension Tolerance Range :

2.56" X 7.28" ( +/- 0.003 ) , 0.014" (in Inches) ThicknessTolerance Negative -ve 0.005866"

65.024 X 184.912 ( +/- 0.0762 ) , 0.3556 (in mm) ThicknessTolerance Negative -ve 0.149mm

Above Dimension is Compressed Thickness Tolerance.

4. Corner Radius : 4 Sides.

5. Paper Pouch Size ( W x L ) : 114 x 210 (in mm)

6. Solution Content : Alcohol Cleaner

7. Solution Volume : 1.0 +/- 0.25 ml

Figure 1 Picture illustrate the Microfiber Flocked Fibers Cleaning Process

The excellent dirt collection of the flock prevents simple distribution

of the dirt on the inside of the Bill Validators. The particles are collected by the fibres and removed when taking out the card.

Bill Acceptor Flocked Cleaning Cards


Double-sided Diamond Flocked Pre-saturated with IPA Cleaner.

Packing : 25 Cleaning Card Per Box

Nominal Size : 65 x 185 x 0.40 mm

Part Number : BVCC-65185FD


Picture:

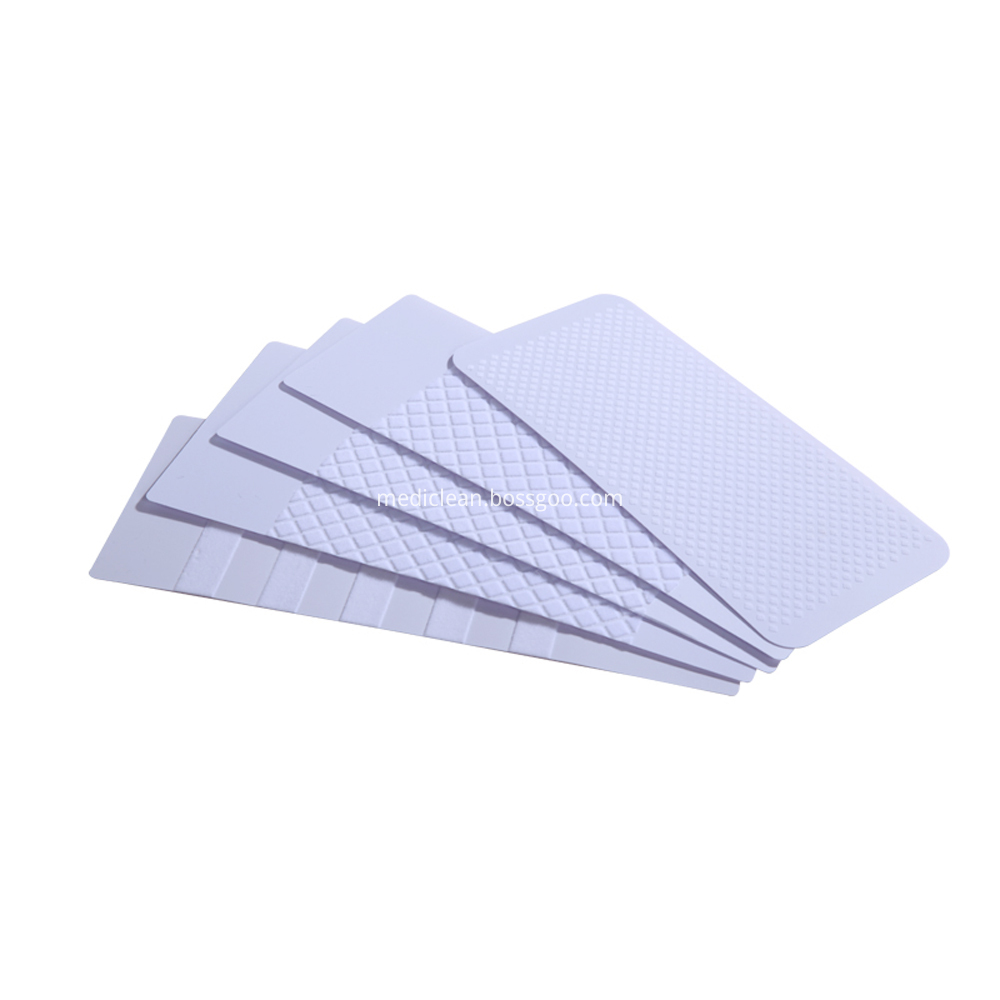

Bill Acceptor Flocked Cleaning Cards 65x185mm

  • 1
  • 2
  • 3
  • 4
  • 5
